Sentinel Guard Correctional LED Lighting
Tamper-proof, ligature-resistant, IK10+ impact-rated LED fixtures engineered for correctional and secure detention environments.
Built to Withstand. Designed to Protect.
The Sentinel Guard platform is a Lamar LED product line purpose-built for correctional, detention, and behavioral health facilities. Every design decision — from the ligature-resistant profile to the tamper-proof security screws — prioritizes inmate safety, staff security, and long-term operational durability in the most challenging institutional environments.
- Anti-ligature design with zero grab points — eliminates self-harm risk
- IK10+ impact rated — withstands sustained physical assault
- Tamper-proof security screws require proprietary driver for access
- Vandal-resistant polycarbonate lens — shatter-proof, no glass fragments
- BABA/BAA compliant — manufactured in Central Islip, NY
Key Specifications
| Impact Rating | IK10+ (20+ joules) |
|---|---|
| Ingress Protection | IP65 |
| Ligature Resistance | Anti-ligature profile — zero grab points, sloped surfaces |
| Lens Material | Vandal-resistant polycarbonate, shatter-proof |
| Housing Material | Heavy-gauge steel, welded seams, powder coated |
| Fasteners | Tamper-proof security screws (proprietary driver required) |
| Correlated Color Temperature | 4000K standard |
| CRI | ≥ 80 |
| Lumen Output Range | 2,800 – 6,400 lumens (model dependent) |
| Rated Lifespan | L80 > 50,000 hours |
| Dimming | 0-10V compatible |
| Mounting | Surface mount, recessed (both available) |
| Voltage | 120-277VAC universal |
| Compliance | IESNA correctional guidelines, ACA standards |
| Certifications | UL Listed, BABA/BAA Compliant, RoHS |
Features & Benefits
Anti-Ligature Design
Zero-grab-point profile with fully sloped surfaces eliminates any attachment opportunity. Meets behavioral health and correctional ligature-resistance standards — a critical life-safety requirement in detention environments.
IK10+ Impact Resistance
Exceeds IK10 standards with 20+ joules of impact resistance. Heavy-gauge steel housing with welded seams withstands sustained physical assault, thrown objects, and attempted vandalism without structural failure.
Tamper-Proof Security Screws
All fasteners use proprietary security-drive heads that require a specialized driver for removal. Eliminates unauthorized access to internal components — fixture cannot be opened without maintenance tooling.
Vandal-Resistant Polycarbonate Lens
High-impact polycarbonate lens is virtually unbreakable — no glass fragments that could be used as weapons. UV-stabilized to prevent yellowing over the fixture's rated 50,000-hour lifespan.
IESNA Correctional Compliance
Designed to meet IESNA RP-39 illumination guidelines for correctional facilities including minimum footcandle levels for cells, corridors, and common areas. Supports ACA accreditation lighting requirements.
50,000+ Hour Lifespan
Over 50,000 hours to L80 lumen maintenance dramatically reduces relamping cycles in environments where fixture access requires security escorts, cell block shutdowns, and multi-person maintenance crews.
Applications

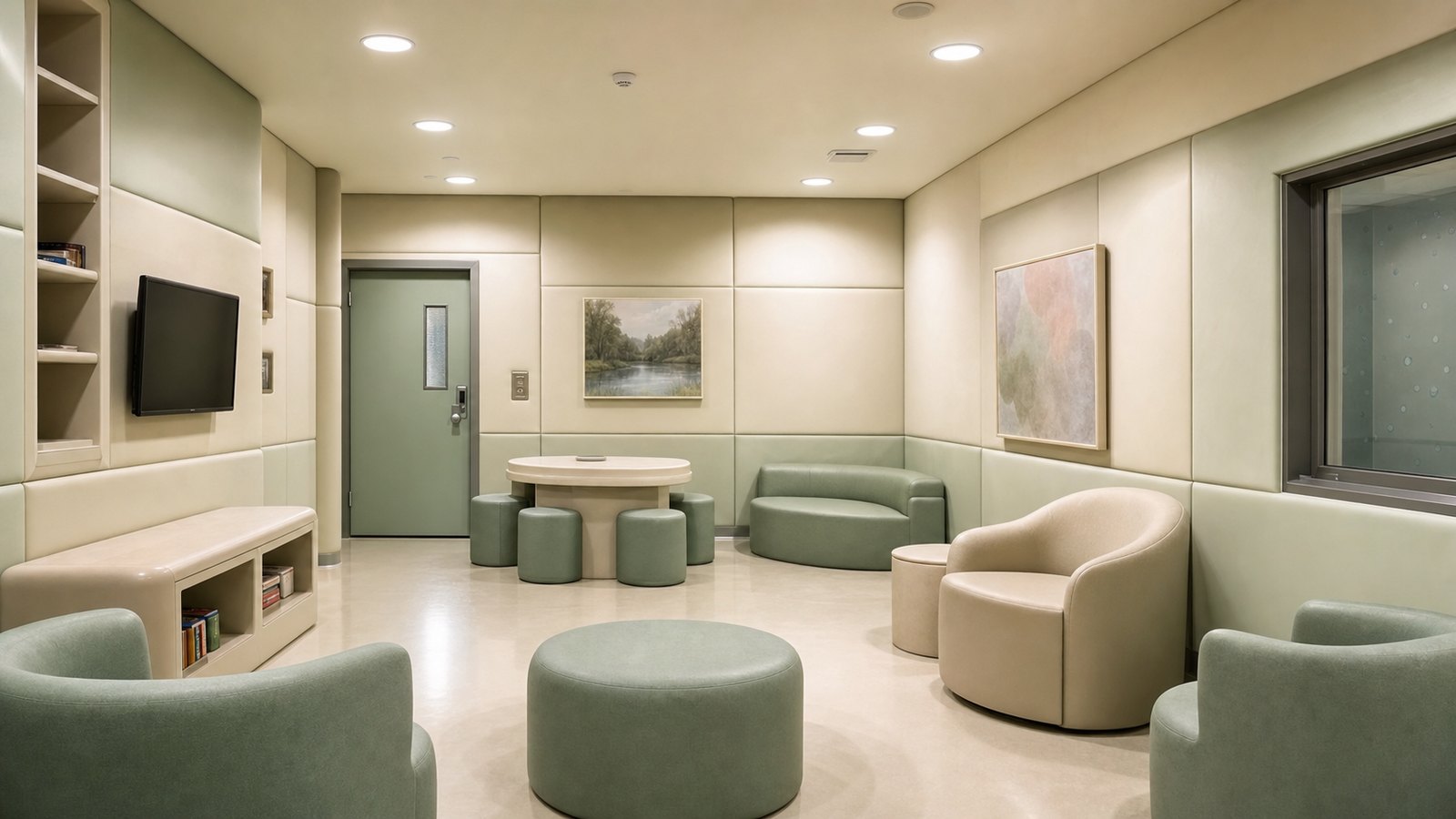

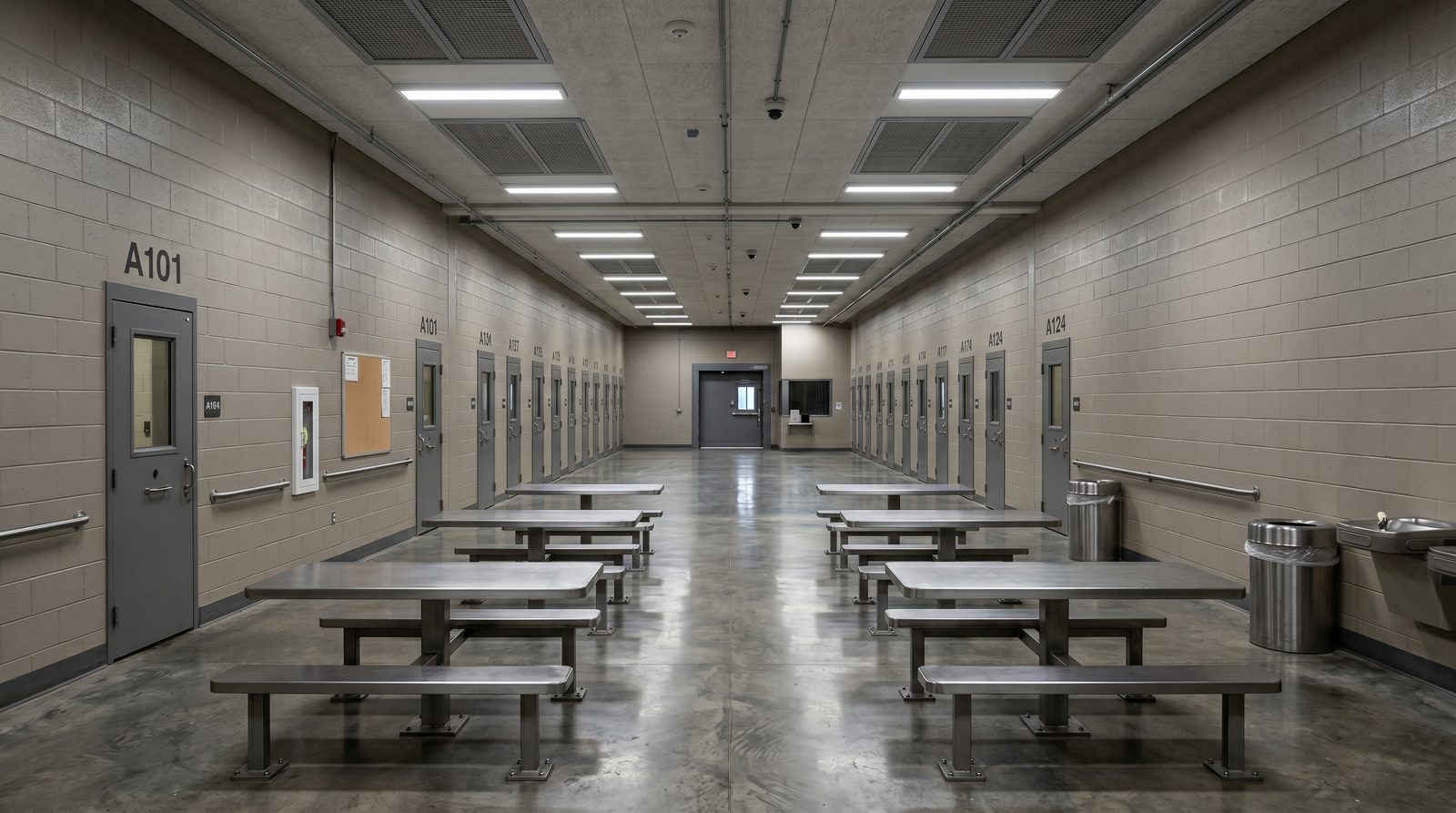

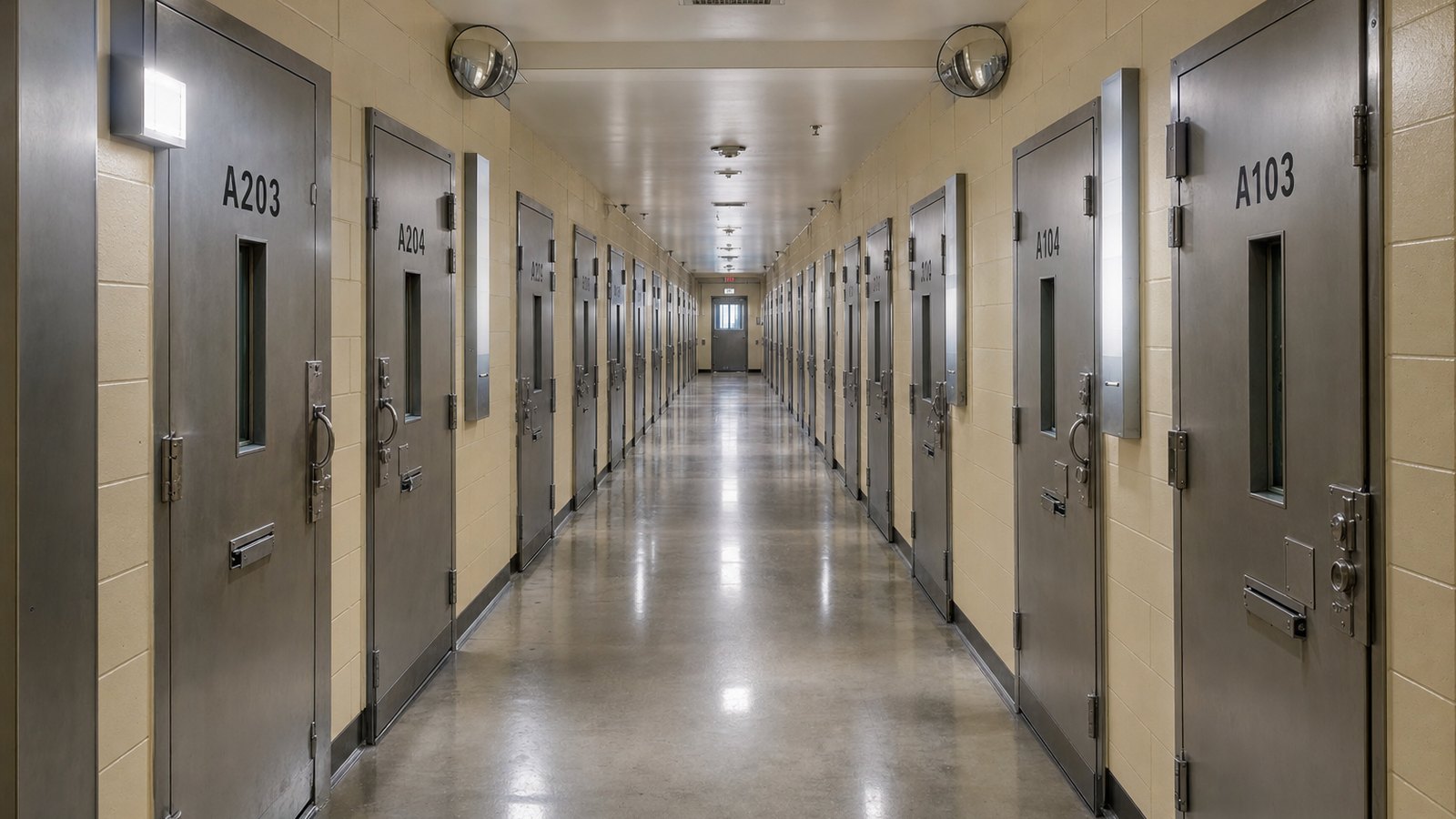

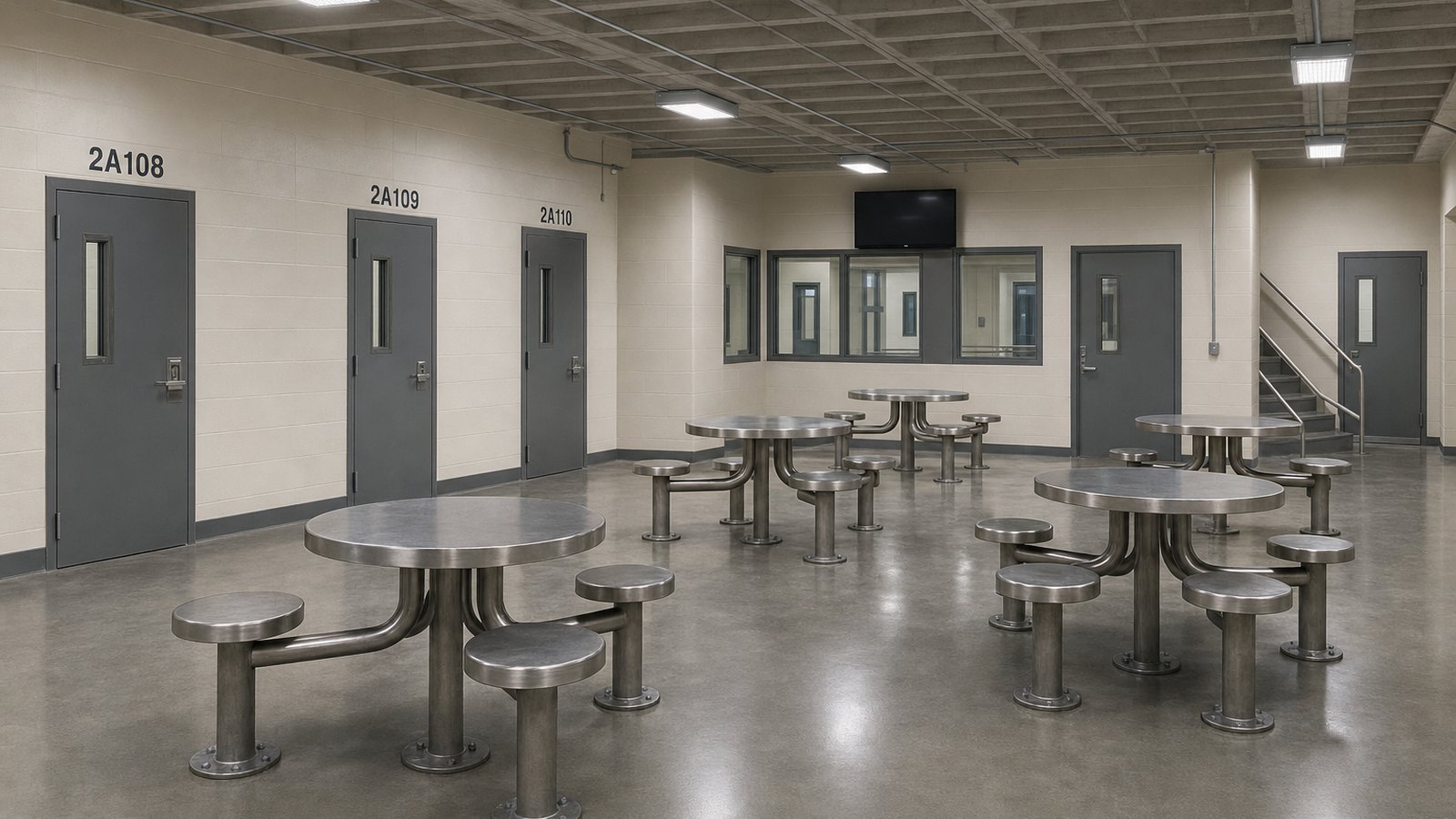

The Sentinel Guard platform is deployed in correctional, detention, and behavioral health facilities where durability and occupant safety are non-negotiable.
Where this product lives
A sample of installations specifying this product family. Reach out for the full project reference list.
SentinelGuard™ Family
Twelve fixture variants across panel, wall-mount, task-light, and exit-sign formats. Suffix key: R = Recessed mount · S = Surface mount · WM = Wall mount · TL = Task Light · EX = Exit Sign.
