Why Occu-Smart is built for NFPA 101 compliance

NFPA 101 Section 7.8 requires illumination of egress paths whenever the building is occupied — not at a fixed schedule, not on a wall switch, but tied to actual occupancy. Conventional fixtures left running 24/7 burn energy and shorten lifespan. Hard-switched fixtures fail the spirit of the code when occupancy is uncertain. Occu-Smart sits exactly between the two: every fixture has integrated sensing, dims to a code-compliant low-level baseline when unoccupied, and ramps to full output the instant motion is detected.

Bi-level dimming, default

High and low levels are field-adjustable via Bluetooth — meet the egress illumination minimum at the low state, ramp instantly on detection.

No central control needed

Sensing is per-fixture. Code compliance does not depend on a building management system, occupancy panel, or wired backbone.

VOL GEN6 Voyager flagship

The Voyager platform adds Bluetooth field tuning, time-delay control, and 0-10V output for integration when a BMS is present.

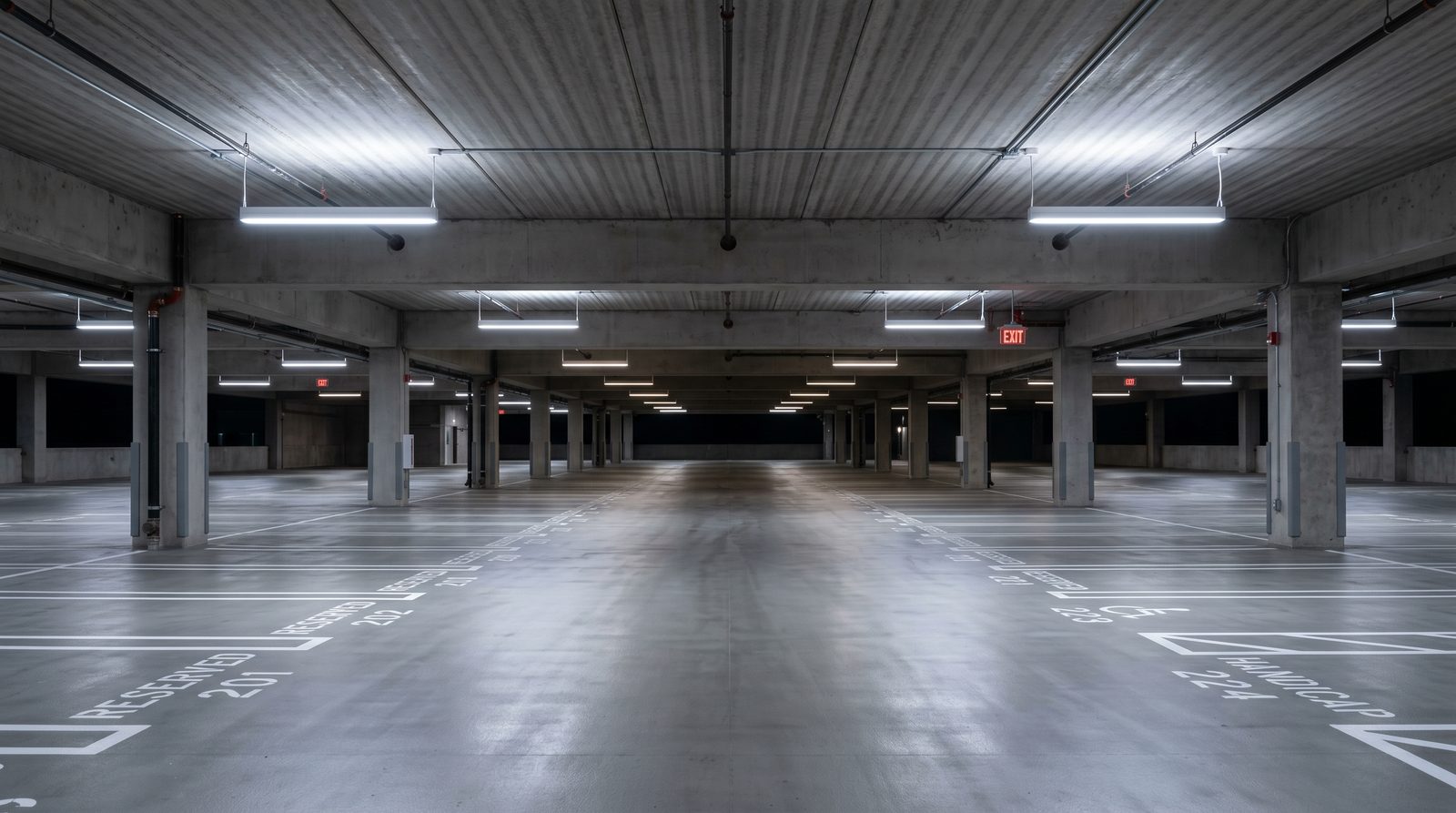

Occu-Smart motion-sensor LED fixtures — the most-deployed bi-level dimming platform in its class

Lamar LED Product Line

The Most Deployed Occupancy Sensor Platform in Its Class

With over 500,000+ units installed across NYCHA, GSA facilities, universities, and commercial buildings nationwide, the Occu-Smart platform is the proven solution for occupancy-based lighting control. 6 core families — plus sensor and form-factor variants — cover every mounting condition, from the Bluetooth-enabled VOL GEN6 Voyager to the compact SUNLD Saturn with adjustable CCT.

500,000+ units installed — proven at scale across federal, municipal, and commercial projects
6 core families spanning ultrasonic, high-frequency, and infrared sensor technologies
Bluetooth 5.0 field-adjustable output, dim levels, and time delay (VOL GEN6)
40–60% typical energy savings with bi-level dimming during vacancy
DLC QPL listed, BABA/BAA compliant — manufactured in Central Islip, NY

Request a Quote Compare Families

From the Lamar LED heritage

Smart occupancy control, refined over two decades of Lamar engineering.

Lamar LED introduced occupancy-sensing fixtures to specifiers years before bi-level dimming became standard. Clear-Vu Lighting acquired the Lamar catalog and brought the entire Occu-Smart family in-house — same sensor engineering, same union assembly, same Central Islip factory — with the BABA/BAA documentation, DLC qualifications, and full warranty of the broader Clear-Vu platform.

Read the Lamar LED story →

Sensor Technologies	Ultrasonic, High-Frequency (HF), Infrared (PIR)
Bluetooth Connectivity	Bluetooth 5.0 (VOL GEN6 & select models)
Dimming Mode	Bi-level — full output (occupied) / adjustable standby (vacant)
Standby Dim Range	Field adjustable from 10% to 50% of full output
Time Delay	Field adjustable — 30 sec to 30 min (model dependent)
Energy Savings	40–60% typical reduction vs. always-on fixtures
Lumen Output Range	1,800 – 12,000+ lumens (model dependent)
Correlated Color Temperature	4000K standard / adjustable CCT on select models
CRI	≥ 80
Rated Lifespan	L80 > 50,000 hours
Voltage	120-277VAC universal
Mounting Options	Surface, corner, wall, pendant (model dependent)
Mobile App	Free iOS & Android companion app (Bluetooth models)
Certifications	DLC QPL Listed, UL/ETL Listed, BABA/BAA Compliant, FCC Part 15

Series	Product Name	Sensor Type	Mounting	Key Differentiator

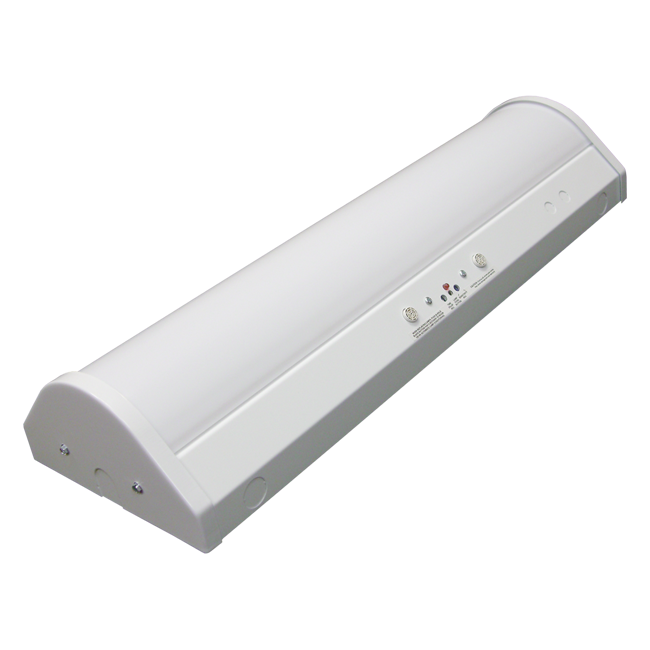

VOL GEN6 BT	Voyager Bi-Level	Ultrasonic	Surface / Wall	Bluetooth 5.0, field-adjustable via app, flagship model
CNOS	Corner Mount Direct	Ultrasonic	Corner / Wall	90° corner mount with flat lens, stairwell optimized

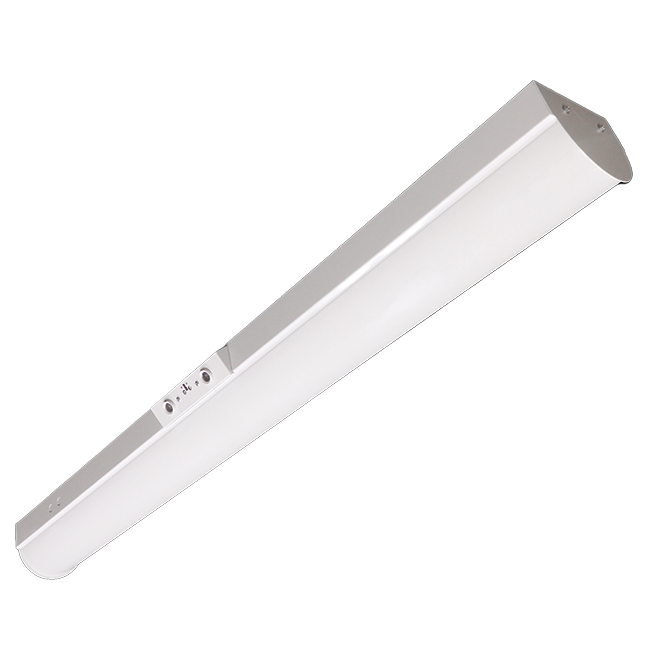

Titan (TTU / TTH)	Titan Bi-Level	Ultrasonic & High-Frequency	Surface	High-output round, garage & utility rated; HF variant detects through barriers
DLLR	Bi-Level Round LED	Infrared (PIR) / Motion	Surface	Compact round form factor, quick retrofit; motion-sensor variant available
SSLED Spartan	Spartan Bi-Level Strip	Infrared (PIR) & High-Frequency	Surface	Strip form factor for utility & storage; HF variant detects through enclosures

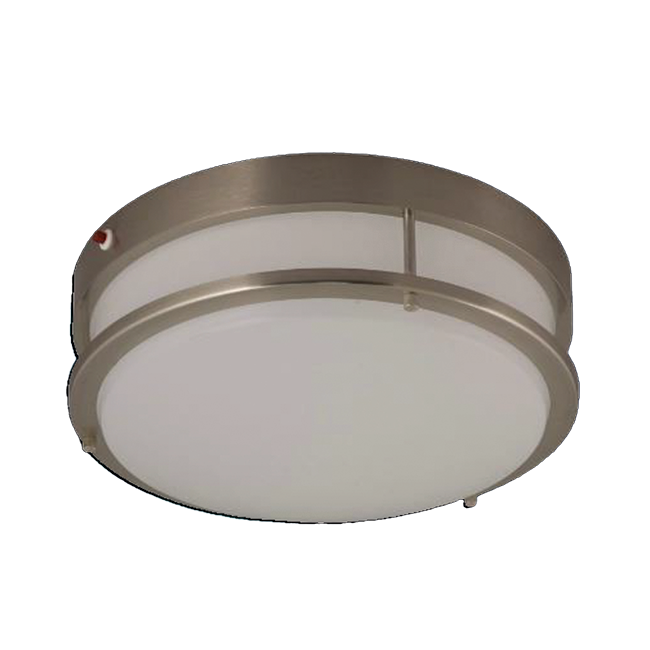

SUNLD	Saturn Decorative Round	Motion Sensor	Surface	Decorative Saturn form factor with adjustable CCT

Also available: VOLH (Voyager HF variant), DL Delta (industrial integral-sensor), and DLLR with motion sensor. See all Occu-Smart fixtures in the Fixture Finder →

Multi-Sensor Technology

Choose ultrasonic (360° coverage, detects through partitions), high-frequency (penetrates barriers, no line-of-sight), or infrared (precise motion, no false triggers). Match the sensor to the application.

Bluetooth Field Adjustability

VOL GEN6 Bluetooth 5.0 enables wireless commissioning via free iOS/Android app. Adjust output power, standby dim levels, time delay, and sensor sensitivity from the ground — no ladder required.

40–60% Energy Savings

Bi-level dimming automatically reduces output during vacancy periods. Typical installations achieve 40–60% energy reduction vs. always-on fixtures — ROI in under 2 years on most stairwell and corridor projects.

Bi-Level Dimming

Occupied mode delivers full output for safety and task lighting. Vacancy mode drops to an adjustable standby level (10–50%) — maintaining ambient light while dramatically cutting consumption. Smooth transitions, no abrupt on/off.

DLC QPL Listed

DesignLights Consortium Qualified Products List certification qualifies Occu-Smart for utility rebate programs nationwide. Reduces effective project cost and accelerates payback on retrofit and new construction projects.

BABA/BAA Compliant

Manufactured at our 100,000 sq ft Central Islip, NY facility. Fully compliant with Buy American Build America Act (BABA) and Buy American Act (BAA) for federal, state, and infrastructure projects.
