orLED Surgical-Suite & Healthcare Ambient LED Lighting
Ceiling-mounted ambient and perimeter LED illumination for operating rooms, exam rooms, and patient-care areas — low direct glare, 95+ CRI, shadow-supportive light field.
Where Light Quality Is a Clinical Necessity
The orLED platform delivers 95+ CRI ambient illumination with low direct glare — purpose-built for surgical suites, exam rooms, and patient-care areas where accurate color rendering and visual comfort directly impact clinical outcomes. Trusted by healthcare facilities nationwide for over a decade.
Scope: orLED is a ceiling-mounted ambient and perimeter lighting system for surgical suites and healthcare environments. It is not a surgical task light or sterile-field surgical luminaire and is not intended to replace overhead surgical headlights, mobile exam lamps, or the primary task lighting required for invasive procedures.
- 95+ CRI with R9>50 for accurate tissue and skin tone rendering
- UGR<19 zero-glare optics eliminate veiling reflections and visual fatigue
- Shadow-free illumination with precision multi-source optical design
- Antimicrobial powder coat finish reduces surface pathogen colonization
- Flicker-free driver (<1% flicker) for surgeon and staff comfort
Key Specifications
| Color Rendering Index (CRI) | 95+ (typical 97) |
|---|---|
| R9 (Deep Red Rendering) | > 50 |
| Unified Glare Rating (UGR) | < 19 |
| Correlated Color Temperature | 3000K / 3500K / 4000K / 5000K selectable |
| Flicker | < 1% (IEEE 1789 compliant) |
| Lumen Output Range | 2,400 – 8,500 lumens (model dependent) |
| Efficacy | Up to 125 lm/W |
| Ingress Protection | IP54 |
| Rated Lifespan | L80 > 50,000 hours |
| Dimming | 0-10V, DALI, Lutron EcoSystem compatible |
| Emergency Backup | Integral emergency driver option (90 min) |
| Housing Material | Extruded aluminum with antimicrobial powder coat |
| Lens | Micro-prismatic acrylic, sealed edge |
| Mounting | Recessed, surface, suspended (pendant kits available) |
| Voltage | 120-277VAC universal |
| Certifications | UL 1598 Listed, FCC Part 15 Class A, RoHS, DLC QPL |
Features & Benefits
Zero-Glare Optics
Precision micro-prismatic lens design eliminates direct glare and veiling reflections. UGR<19 rating ensures visual comfort during extended surgical procedures and patient examinations.
95+ CRI Color Rendering
Industry-leading 95+ CRI with R9>50 deep red rendering enables accurate assessment of tissue color, skin tones, and vascular conditions. Critical for diagnostic and surgical environments.
Antimicrobial Finish
Optional antimicrobial powder coat with EPA-registered additive actively inhibits microbial growth on fixture surfaces. Smooth, sealed housing simplifies wipe-down decontamination protocols.
Flicker-Free Operation
Sub-1% flicker performance per IEEE 1789 eliminates stroboscopic effects that cause headaches and eye strain. Essential for environments where staff work 10+ hour shifts under artificial light.
Integral Emergency Backup
Factory-integrated 90-minute emergency driver maintains illumination during power events. Automatic switchover with no perceptible gap — critical for active surgical procedures and emergency departments.
Shadow-Free Illumination
Multi-source optical geometry produces uniform, shadow-free light distribution across the task plane. Eliminates harsh shadows from surgical instruments, equipment, and personnel movement.
Applications
The orLED platform is designed for clinical environments where light quality directly impacts patient outcomes and staff performance.

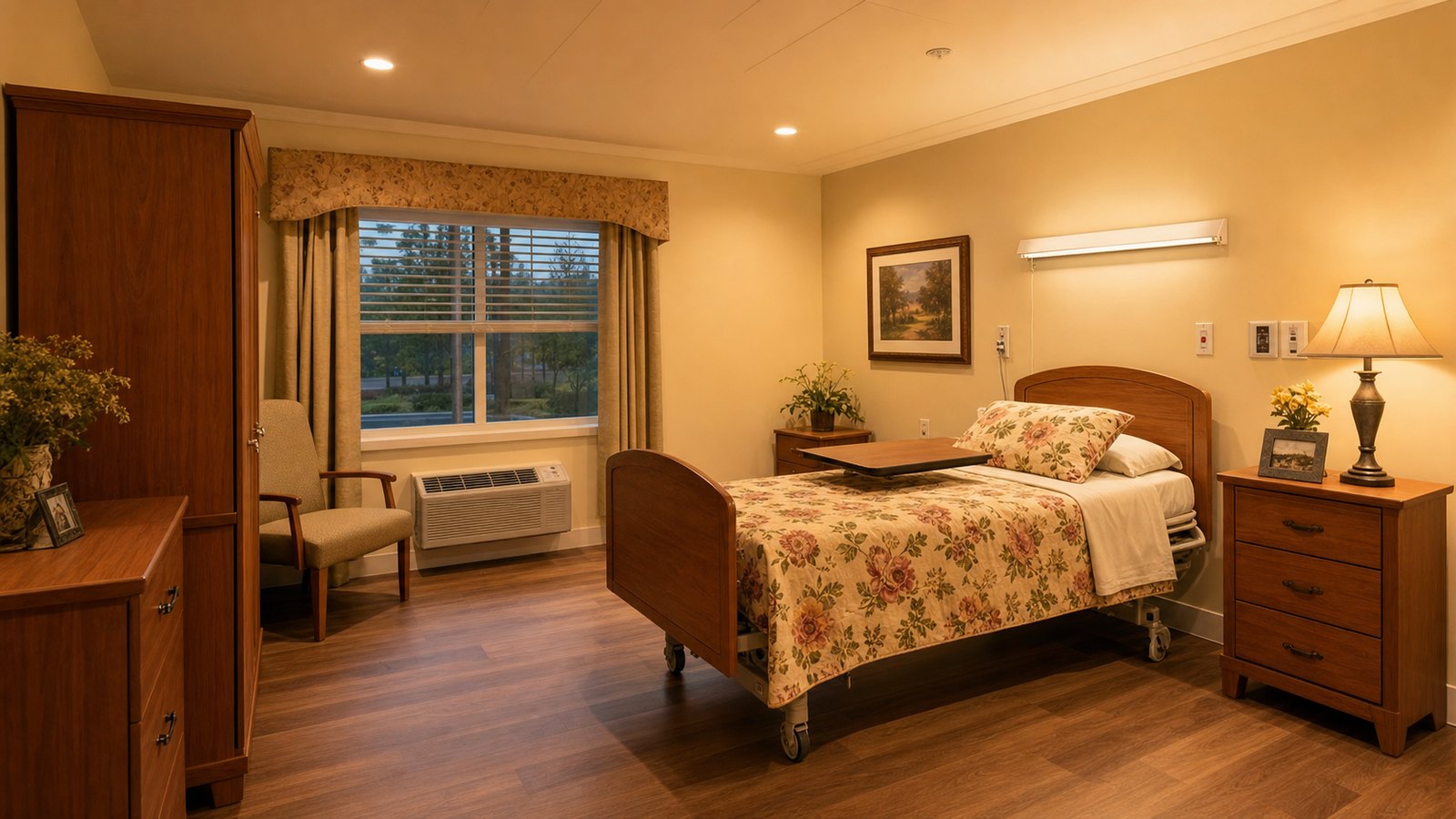

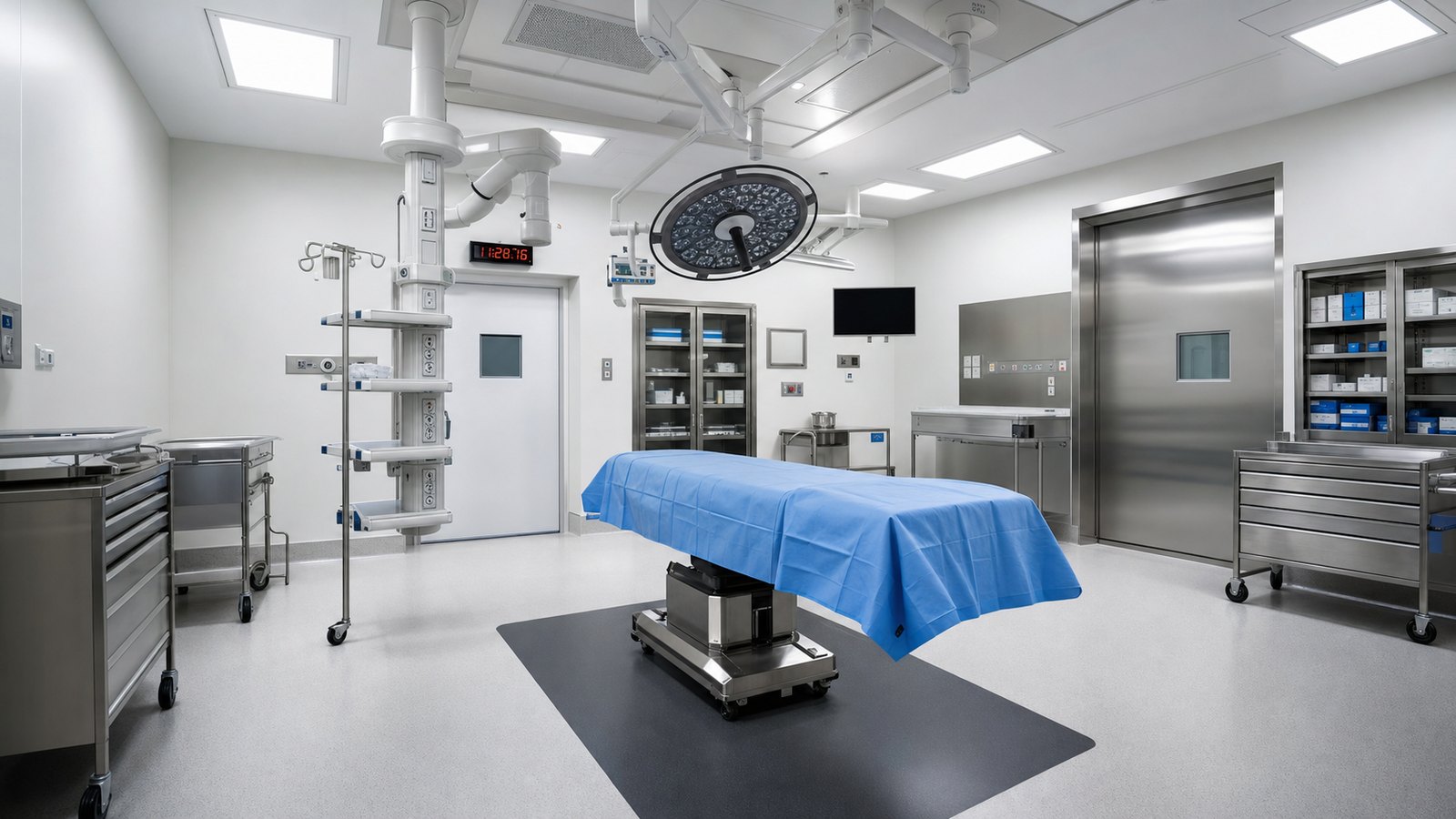

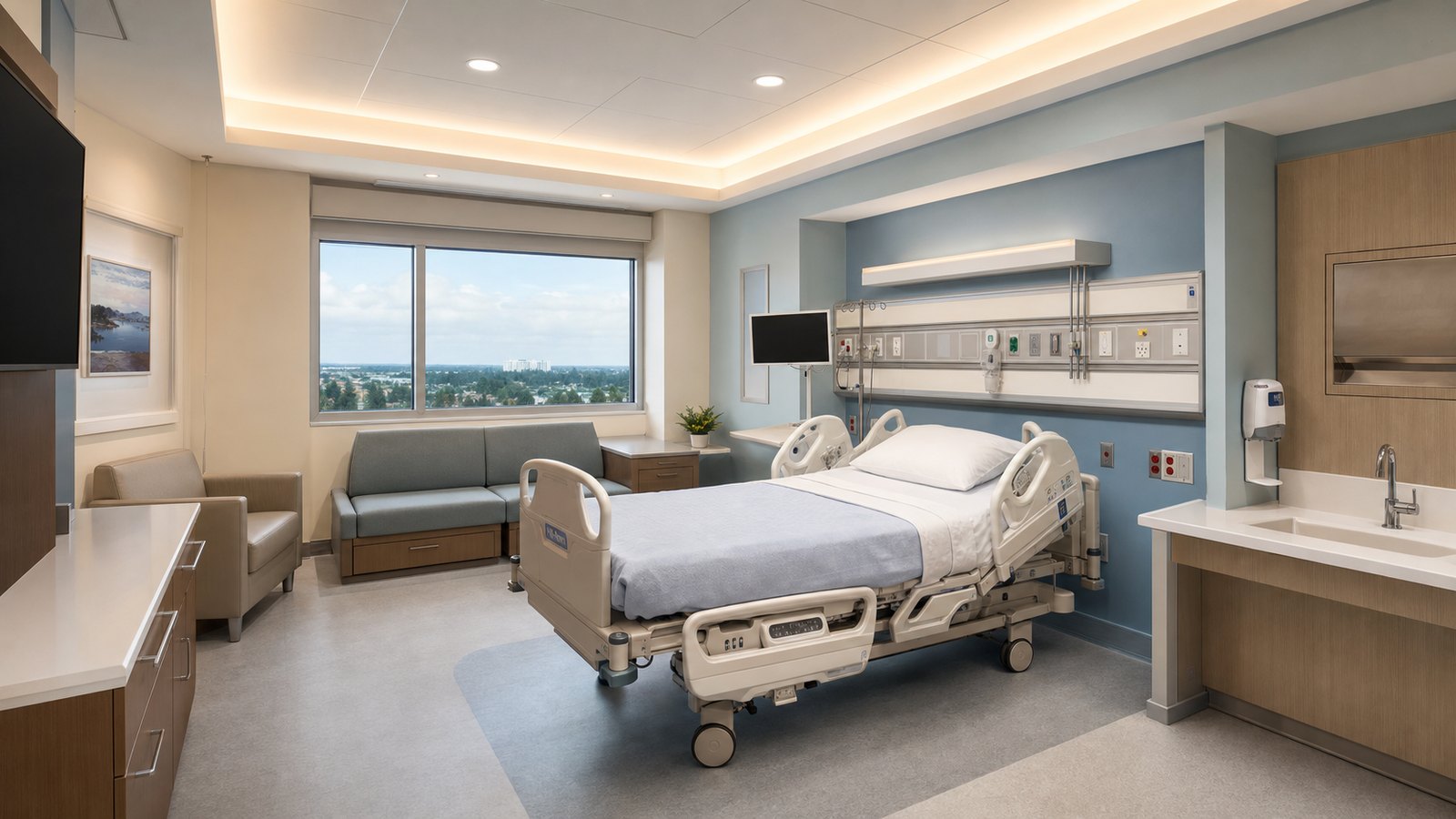

Where this product lives
A sample of installations specifying this product family. Reach out for the full project reference list.
