Architectural LED Fixtures

32 product families — linear, wall, round, recessed, and suspended configurations for every commercial and industrial application.

Clear-Vu Architectural LED linear fixtures installed in a commercial corridor
Lamar LED Product Line

One Platform. Every Configuration. Any Space.

The Architectural LED platform is the broadest product line in the Lamar LED portfolio — 32 product families spanning 5 sub-categories, each engineered for specification-grade commercial and industrial environments. From the flagship LLS custom-length linear system to multi-color tuning suspended pendants, every fixture shares the same commitment to American manufacturing, DLC performance, and field-adjustable flexibility.

  • 32 product families across linear, wall, round, recessed, and suspended categories
  • Field-selectable CCT (3000K/3500K/4000K/5000K) on most models
  • Multi-color tuning (MCT) boards on 8+ series for dynamic color control
  • Custom lengths available on linear systems — no field cutting required
  • DLC QPL listed, BABA/BAA compliant — manufactured in Central Islip, NY
From the Lamar LED heritage

A specifier-grade architectural catalog, now under one American roof.

Lamar LED built its reputation on linear, area, and architectural fixtures specified across U.S. campuses, healthcare facilities, and commercial projects. Clear-Vu Lighting acquired the catalog and brought every Lamar SKU in-house — same engineering team, same union assembly, same Long Island factory — with the BABA/BAA documentation, DLC qualifications, and warranty of the broader Clear-Vu platform.

Read the Lamar LED story →
Technical Data

Key Specifications

Platform-level specifications applicable across the Architectural LED product families. Individual series spec sheets provide model-specific data.

Product Families 32 series across 5 sub-categories
Correlated Color Temperature 3000K / 3500K / 4000K / 5000K (field-selectable on most models)
Multi-Color Tuning MCT boards available on 8+ series (NLSDI-MCT, NLSD-MCT, NLSI-MCT, etc.)
CRI > 80 (90+ CRI available on select series)
Efficacy Up to 140 lm/W (series dependent)
Lumen Output Range 800 – 18,000+ lumens (model dependent)
Dimming 0-10V standard, DALI optional, ELV on select models
Rated Lifespan L80 > 50,000 hours
Voltage 120-277VAC universal
Mounting Configurations Surface, suspended, recessed, wall mount, pendant
Distribution Types Direct, indirect, direct/indirect
Custom Lengths Available on LLS, IAS, and linear series — cut to order
Lens Options Frosted acrylic, formed, volumetric, dual lens
Certifications DLC QPL Listed, UL/ETL Listed, BABA/BAA Compliant, FCC Part 15
Full Catalog

Product Families by Category

Linear Systems 11 series
SeriesDescriptionDistribution
LLSLinear Lighting System — custom run length, any configurationDirect
44LSDI4×4 LED Suspended Direct/IndirectDirect/Indirect
66LS6×6 Linear Direct Surface/SuspendedDirect
NLSDINarrow Linear Suspended Direct/IndirectDirect/Indirect
NLSDI-MCTNarrow Linear Suspended Direct/Indirect — Multi-Color TuningDirect/Indirect
TRSDITriangular Linear Suspended Direct/IndirectDirect/Indirect
NLSDNarrow Linear Surface/Suspended DirectDirect
NLSD-MCTNarrow Linear Surface/Suspended Direct — Multi-Color TuningDirect
NLSINarrow Linear Suspended IndirectIndirect
NLSI-MCTNarrow Linear Suspended Indirect — Multi-Color TuningIndirect
TRSDTriangular Linear Surface/Suspended DirectDirect
Wall Mount 5 series
SeriesDescriptionDistribution
44LWDI4×4 Linear Wall Mount Direct/IndirectDirect/Indirect
NLWDINarrow Linear Wall Mount Direct/IndirectDirect/Indirect
NLWDI-MCTNarrow Linear Wall Mount Direct/Indirect — Multi-Color TuningDirect/Indirect
NLWDNarrow Linear Wall Mount DirectDirect
NLWD-MCTNarrow Linear Wall Mount Direct — Multi-Color TuningDirect
Round & Surface 8 series
SeriesDescriptionMounting
NLSRNarrow Linear Surface/Suspended RoundSurface / Suspended
NLSR-MCTNarrow Linear Surface/Suspended Round — Multi-Color TuningSurface / Suspended
44LSD4×4 LED Surface/SuspendedSurface / Suspended
44LWD4×4 LED Wall Mount DirectWall
S1LSurface Mount Volumetric LEDSurface
S2LSurface Mount Dual Lens Volumetric LEDSurface
SFLFormed Lens Surface LEDSurface
IASInfinity Architectural Suspended — seamless mitered cornersSuspended
Recessed 5 series
SeriesDescriptionKey Feature
LFLFormed Lens Recessed, Lay-inFormed lens optic
LVLRecessed LED Troffer with Angled LensAngled lens distribution
R1LRecessed Volumetric LEDVolumetric optic
R1LARecessed Adjustable CCT/Output Volumetric LEDField-adjustable CCT & output
R2LRecessed Dual Lens Volumetric LEDDual lens design
Suspended & Specialty 3 series
SeriesDescriptionDistribution
ATRLAtria Direct/IndirectDirect/Indirect
DRLDurado SuspendedDirect
QMLQuazar Mini Suspended Direct/IndirectDirect/Indirect
Why Architectural LED

Features & Benefits

Field-Selectable CCT

Most models ship with field-selectable color temperature (3000K/3500K/4000K/5000K). One SKU covers multiple specifications — simplifying inventory, reducing lead times, and enabling last-minute design changes without reordering.

Multi-Color Tuning

8+ MCT series feature dedicated multi-color tuning LED boards. Dynamically shift color temperature for circadian rhythm support, scene programming, or tenant preference — controlled via standard 0-10V or DALI protocols.

5 Mounting Configurations

Surface, suspended, recessed, wall mount, and pendant options across the platform. Mix mounting types within the same product family to maintain visual consistency across different ceiling conditions in a single project.

Custom Lengths Available

LLS and linear series support any custom run length — precision fabricated at our facility with no field cutting. Custom fixed-angle and 90° corners maintain seamless illumination across geometric configurations.

DLC QPL Listed

DesignLights Consortium Qualified Products List certification across the platform. Qualifies for utility rebate programs nationwide, reducing project costs and accelerating payback for commercial and industrial renovations.

BABA/BAA Compliant

All 32 series manufactured at our 100,000 sq ft Central Islip, NY facility. Union made. Fully compliant with BABA and BAA requirements for federal, state, and infrastructure projects nationwide.

Where It’s Used

Applications

Architectural LED is specified across every commercial and industrial building type — from corporate offices to healthcare corridors.

Offices
Corporate & coworking
Healthcare Facilities
Corridors & common areas
Hospitality & Retail
Hotels, lobbies & stores
Conference Rooms
Meeting & presentation
Lobbies & Corridors
Public circulation spaces
Featured Projects

Where this product lives

A sample of installations specifying this product family. Reach out for the full project reference list.

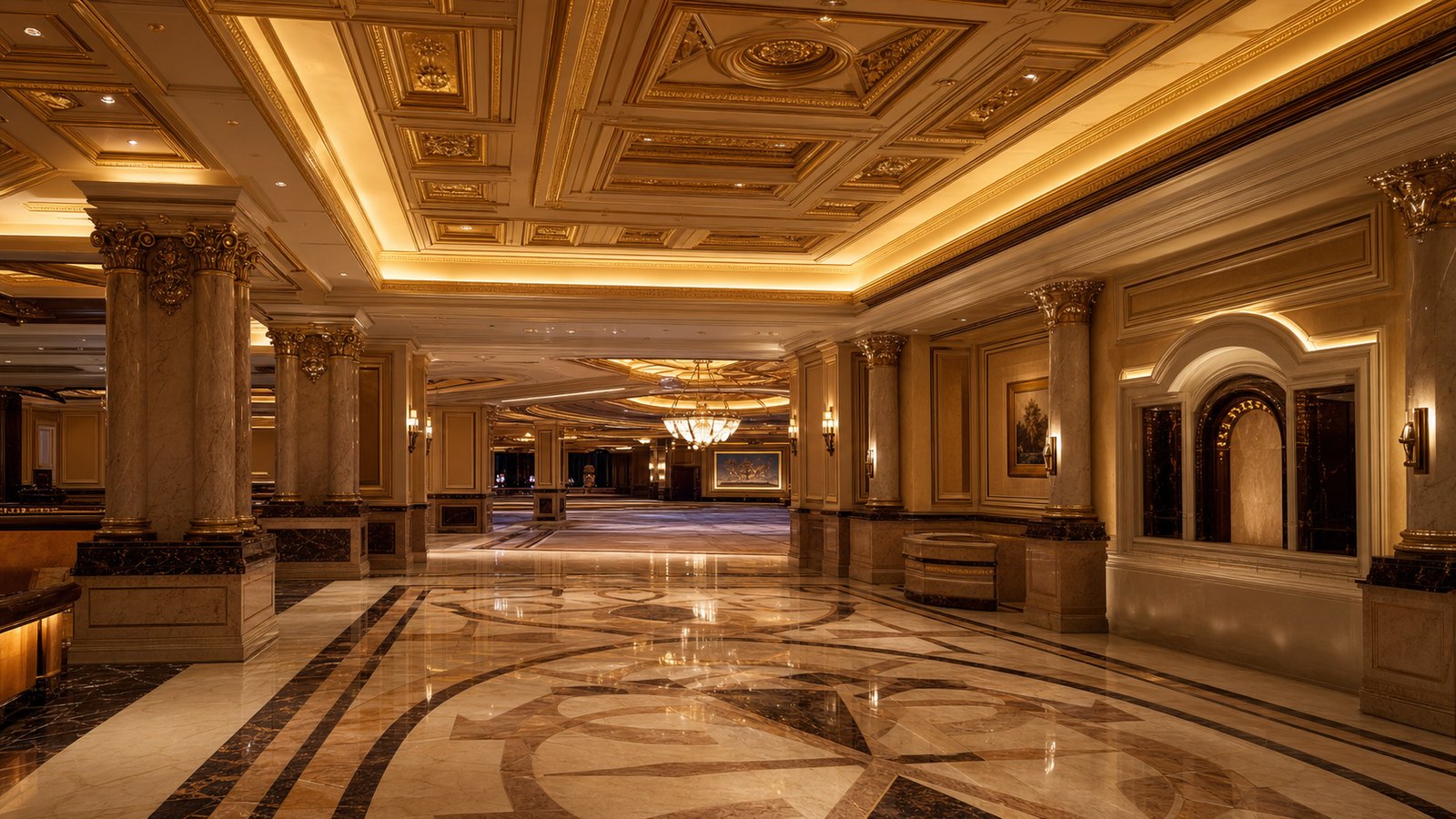

Hospitality Caesars Palace Las Vegas

Caesars Palace Las Vegas

Custom ATRL architectural cove and trim runs accenting the resort's lobby, casino floor, and event spaces.

Custom architectural specials
Sports & Entertainment Barclays Center Brooklyn

Barclays Center Brooklyn

Concourse and premium-club architectural lighting engineered for the home of the Brooklyn Nets and New York Liberty.

Premium club ambiance

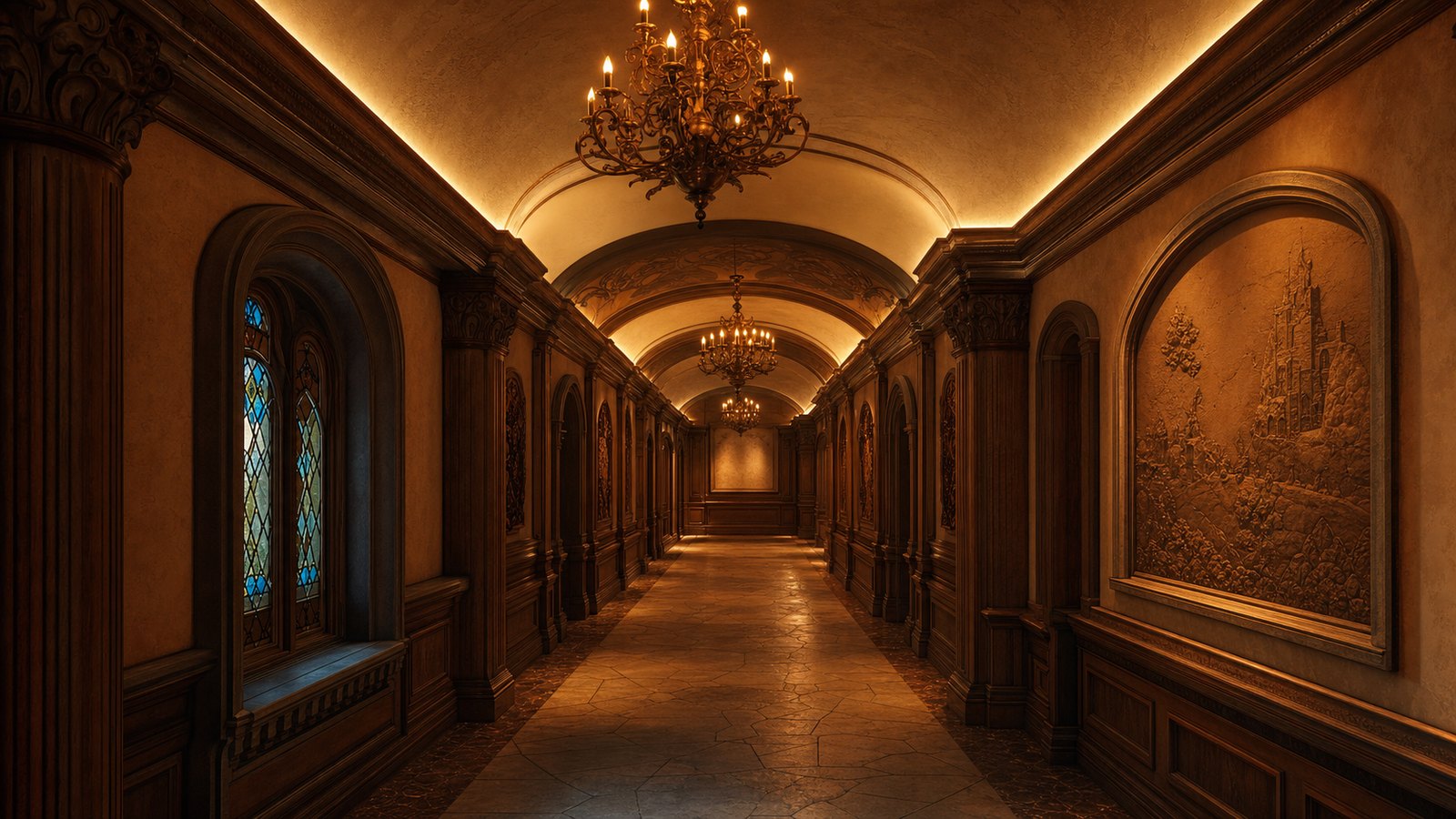

Theme & Resort Disney Property Retrofits

Disney Property Retrofits

Concealed linear LED runs supporting themed environments — dim-to-warm color performance with sub-1°K variance.

<1°K color variance
Resources

Downloads

Browse Full Catalog 32 product families Installation Guides PDF · 8.6 MB IES Files 64 files · per model BIM / Revit RFA · 9.2 MB
Complete Your System

Related Products

Flagship Linear

LLS Linear Lighting

The flagship custom-length linear LED system — any run length, any corner angle, fully lit inside/outside corners. The specification-grade centerpiece of the Architectural LED platform.

Learn More Motion Sensor

Occu-Smart Platform

Add occupancy-based dimming to corridors, stairwells, and utility areas. 500,000+ units installed. Bluetooth field-adjustable with 40–60% energy savings.

Learn More Wireless Control

clearNET Mesh Control

Wireless zone dimming and energy monitoring for Architectural LED installations. 250+ node mesh network with AES-128 encryption and BMS integration.

Learn More

Ready to Specify Architectural LED?

Our architectural lighting team provides photometric layouts, fixture schedules, custom length quotes, and DLC rebate documentation for your project.

Get a Quote Find a Rep

Architectural LED — Photometric (IES) Files

Photometric (.ies) files for each model — for use in AGi32, Visual, DIALux, Revit, and other lighting design tools. Right-click → Save Link As, or click to download directly.

44LG/F — 4×4 Grid/Flanged Recessed

ModelWattsCCTSizeDownload
44L48XHFA3051.2W3000K2 KB.ies
44L48XLFA3023.79W3000K2 KB.ies
44L48XMFA3032.6W3000K2 KB.ies

44LSD — 4×4 Surface/Suspended Direct

ModelWattsCCTSizeDownload
44L48XHFA3051.2W3000K2 KB.ies
44L48XLFA3023.79W3000K2 KB.ies
44L48XMFA3032.6W3000K2 KB.ies

44LWD — 4×4 Wall Mount Direct

ModelWattsCCTSizeDownload
44L48XHFA3051.2W3000K2 KB.ies
44L48XLFA3023.79W3000K2 KB.ies
44L48XMFA3032.6W3000K2 KB.ies

LFL — Formed Lens Recessed

ModelWattsCCTSizeDownload
LFL22H4037.92W4000K13 KB.ies
LFL22L4020.89W4000K13 KB.ies
LFL22M4030.24W4000K13 KB.ies
LFL24H4075.202W4000K13 KB.ies
LFL24L4042.116W4000K13 KB.ies
LFL24M4058.876W4000K13 KB.ies

LSL — Flat Lens Recessed Troffer

ModelWattsCCTSizeDownload
LSL22HPA-4036.3W4000K85 KB.ies
LSL22MPA-4025.8W4000K85 KB.ies
LSL24HPA-4054.9W4000K85 KB.ies
LSL24LPA-4034.4W4000K85 KB.ies
LSL24MPA-4044.2W4000K85 KB.ies

LVL — Recessed Troffer w/Angled Lens

ModelWattsCCTSizeDownload
LVL22H-4032.2W4000K39 KB.ies
LVL22L-4019.2W4000K39 KB.ies
LVL22M-4025.9W4000K39 KB.ies
LVL24H-4057.4W4000K40 KB.ies
LVL24L-4034.1W4000K40 KB.ies
LVL24M-4045.2W4000K40 KB.ies

R1L — Recessed Single Lens Volumetric

ModelWattsCCTSizeDownload
R1L14HFA4045.4W4000K3 KB.ies
R1L14LFA4023.7W4000K3 KB.ies
R1L14MFA4033.9W4000K3 KB.ies
R1L22HFA4045.6W4000K3 KB.ies
R1L22LFA4025.2W4000K3 KB.ies
R1L22MFA4034.5W4000K3 KB.ies
R1L24HFA4082.7W4000K3 KB.ies
R1L24LFA4041.3W4000K3 KB.ies
R1L24MFA4056.8W4000K3 KB.ies

R1LA — Recessed Adjustable CCT/Output

ModelWattsCCTSizeDownload
R1LA14-50-35W34.81W5000K20 KB.ies
R1LA22H-50-35W35W5000K20 KB.ies
R1LA24H-50-45W44W5000K20 KB.ies

R2L — Recessed Dual Lens Volumetric

ModelWattsCCTSizeDownload
R2L22HFA4045.6W4000K3 KB.ies
R2L22LFA4026.7W4000K3 KB.ies
R2L22MFA4034.5W4000K3 KB.ies
R2L24HFA4083.9W4000K3 KB.ies
R2L24LFA4040W4000K3 KB.ies
R2L24MFA4057.5W4000K3 KB.ies

S1L — Surface Mount Single Lens Volumetric

ModelWattsCCTSizeDownload
R1L14HFA4045.4W4000K3 KB.ies
R1L14LFA4023.7W4000K3 KB.ies
R1L14MFA4033.9W4000K3 KB.ies
R1L22HFA4045.6W4000K3 KB.ies
R1L22LFA4025.2W4000K3 KB.ies
R1L22MFA4034.5W4000K3 KB.ies
R1L24HFA4082.7W4000K3 KB.ies
R1L24LFA4041.3W4000K3 KB.ies

S2L — Surface Mount Dual Lens Volumetric

ModelWattsCCTSizeDownload
R2L22HFA4045.6W4000K3 KB.ies
R2L22LFA4026.7W4000K3 KB.ies
R2L22MFA4034.5W4000K3 KB.ies
R2L24HFA4083.9W4000K3 KB.ies
R2L24LFA4040W4000K3 KB.ies
R2L24MFA4057.5W4000K3 KB.ies

SFL — Formed Lens Surface

ModelWattsCCTSizeDownload
LFL22H4037.92W4000K13 KB.ies
LFL22L4020.89W4000K13 KB.ies
LFL22M4030.24W4000K13 KB.ies
LFL24H4075.202W4000K13 KB.ies
LFL24L4042.116W4000K13 KB.ies
LFL24M4058.876W4000K13 KB.ies

Architectural LED Compliance & Certifications

Product-level compliance status. For project-specific certificates of compliance, contact sales@clearvulighting.com.

Note: DLC qualification status varies by model number, wattage, and configuration. Always verify the specific DLC product ID at designlights.org for utility rebate eligibility.
