LED Portable Lamp Bank
Sealed LED worklight for tunnel, third-rail, and catenary environments. 24× 4100K LEDs, 3,000 lumens, 70–75W draw, in two power variants for any field condition.
A sealed worklight engineered for the hardest environments

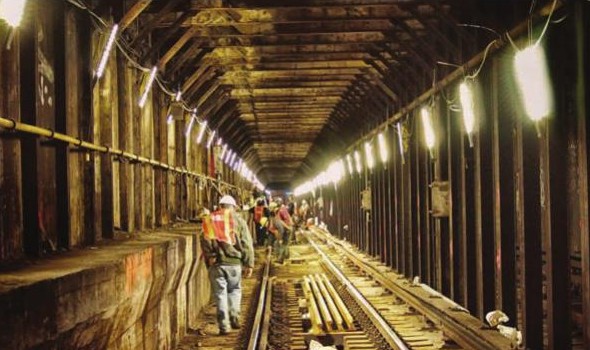

The LED Portable Lamp Bank is a tunnel-grade temporary lighting unit deployed by NYCT, MTA, LIRR, NJ Transit, and contractors performing shutdown work near energized infrastructure. Available in two variants: an AC unit accepting standard utility power, and a high-voltage (HV) unit accepting third-rail or catenary DC voltages directly — no inverter required.
- ✓ 24 high-output 4100K LEDs · 3,000 lumens · 70–75W
- ✓ 29.5" × 4.78" × 7" sealed aluminum enclosure
- ✓ 8–10 lbs — one-person carry, multiple per worker
- ✓ L70 @ 50,000 hours · −20°C to +50°C operating range
- ✓ MIL-STD-461F EMI compliance on HV variant
Two power variants — one fixture
Choose by where the power comes from. Both variants share the same enclosure, optics, and lumen output.
Utility-Powered Variant
Standard 90–305 VAC input for use with shore power, generators, and temporary distribution. Drop-in replacement for halogen string lights and metal-halide tower banks.
- Input: 90–305 VAC (50/60 Hz)
- Cord: Twist-lock, 25 ft
- Use: General construction, station work
High-Voltage DC Variant
Direct-tap to third-rail or catenary voltage. Eliminates need for generators or inverters during shutdown work — tap the rail directly, light up the work zone.
- Input: 450–1000 VDC
- EMI: MIL-STD-461F compliant
- Use: Third-rail / catenary shutdowns
Built for one-person carry, multiple per worker
The PLB-01 enclosure is sealed extruded aluminum — rugged enough for daily tunnel deployment, light enough at 8–10 lbs that a single technician can carry two or three at a time. Twist-lock cord connectors, integrated handles, and a uniform LED bar across the bottom give crews the working light they need without the heat, fragility, or generator dependency of halogen string lights.
- ✓ Sealed aluminum enclosure — IP66 rated
- ✓ Integrated handles for fast deployment and stowage
- ✓ Twist-lock cord connector standard on AC variant
- ✓ Multiple units chain together for long tunnel runs
Technical specifications
Spec the PLB-01 for your shutdown work
Talk to engineering about variant selection, EMI requirements, and quantity discounts for multi-unit project deployments.
Contact engineering
