Overview

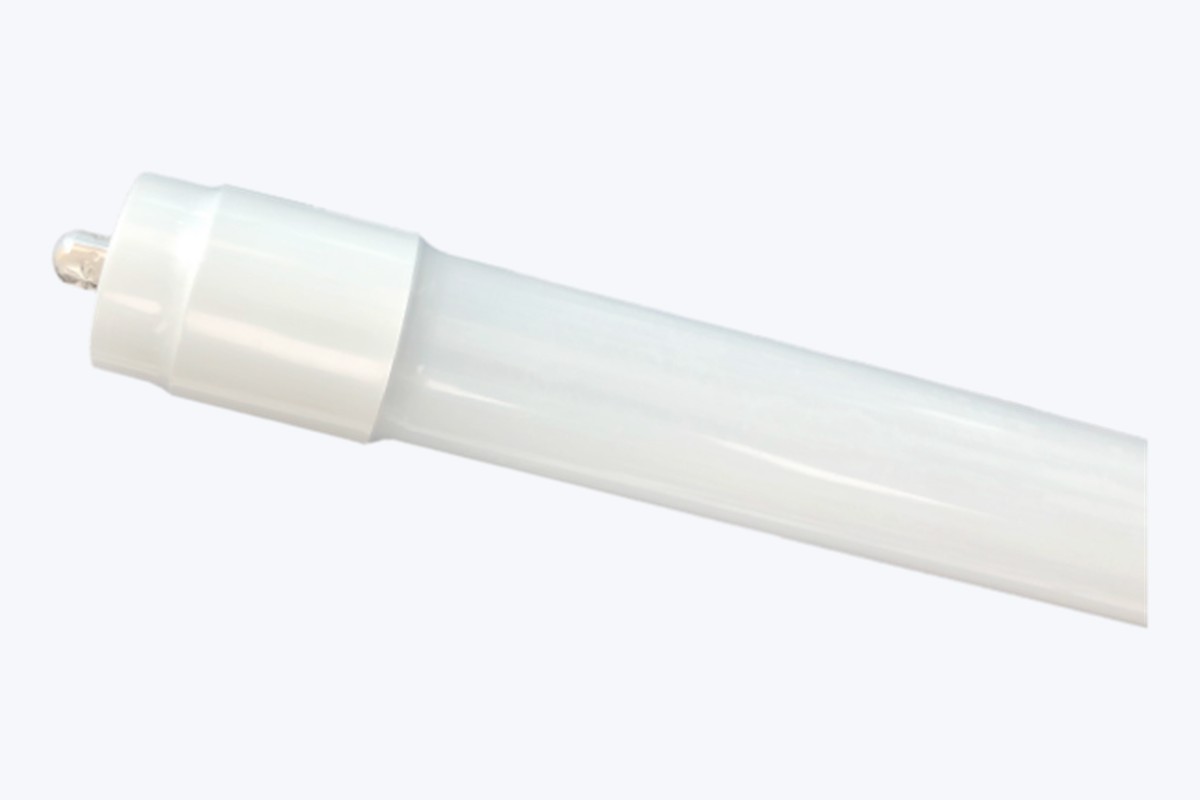

METRO Tube 8 is an LED T-8 tube lamp purpose-engineered for transit station and tunnel applications. A polymer-coated seamless glass body with composite molded end caps eliminates the failure-prone aluminum-back-plate-and-plastic-lens construction common to commodity LED tubes — preserving 360° illumination and structural integrity for the life of the lamp. Direct AC operation (95–295VAC) means no ballast or driver is required for new installs or retrofits, with 140+ lumens per watt delivered at 4000K.
Key features
- Direct AC design: 95–295VAC, no ballast or driver required
- 140+ lumens per watt delivered at 4000K
- 360° illumination — not the 180-220° typical of LED tubes
- Shatter-shield polymer-coated seamless glass body
- Single-pin (FA8) or G13 end-cap options — theft resistant
- Safe Switch ASIC eliminates installation shock hazard
- 2KV surge protection, tested to transit shock & vibration standards
- UL 8750/1598, FCC Part 15 Subpart B, ANSI C136/C78.377, LM-80
Variants
Three configurations cover new construction, low-voltage rolling stock, and emergency-egress retrofit.
METRO Tube 8 (AC)
Direct line voltage 95–295VAC. Lengths 3', 4', 6', 8'. CCTs 3000K / 3500K / 4000K. FA8 or G13 end cap.
Download MT8 spec (PDF) →METRO Tube 8 (DC option)
Direct AC plus optional 23–47VDC low-voltage input. Adds 5000K CCT and custom CCT. Same lengths as MT8. For rolling-stock and DC-bus retrofits.
Download MT8-DC spec (PDF) →METRO Battery Tube 8
Integral UL924 emergency battery backup — 90 min, 2 hr, or 4 hr. Self-test with manual test button. Lengths 4', 6'. UL listing pending.
Download MBT8 spec (PDF) →Specifications
| Parameter | 4' tube | 6' tube |
|---|---|---|
| Lumen output @ 4000K (MT8 / MT8-DC) | 2,500 lm | 3,800 lm |
| Lumen output @ 4000K (MBT8) | 2,400 lm | 3,600 lm |
| Efficacy @ 4000K (MT8) | 147 lm/W | 146 lm/W |
| Rated power | 17 W | 26 W |
| Input voltage | 120–277V | 120–277V |
| CRI | 82 | 82 |
| Power factor | > 0.9 | > 0.9 |
| THD | < 20% | < 20% |
| Surge protection | 2 kV | 2 kV |
| Warranty | 5 years | 5 years |
3' and 8' lengths available on MT8 and MT8-DC. See variant spec sheets for complete ordering information and CCT options.
Typical applications
Subway station overhead and platform lighting, train station retrofits, rail tunnel access spaces, maintenance bays, and any T-8 fluorescent replacement that demands shock/vibration durability and theft-resistant installation.
